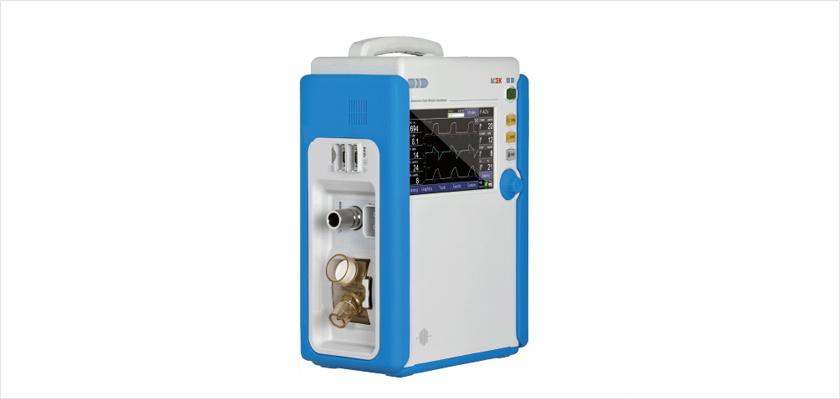

MTV1000 Pneuma2

SU:M Series offer innovated economic and serceable for mainteance

Technically the ventilator is composed of mechanical and electronic control factor. The SU:M Series are as including much more technology of electronics factor.

The Program is not only for maintenancesupply economic maintenance with competitive and innovated checking program. system but also possible to use of education of ventilation system.

Various Mode

• Dual Limb : PACV, PSIMV, VACV, VSIMV, Spont+, O2 Stream, PRVC
• Single Limb(external PEEP valve) : O2 Stream, ACPAP+PS, ABiPAP+PS(PACV, PRVC)

Various Patient Circuit(wide application)

Possible to use both type of internal P-Sol(Proportional Solenoid) Active PEEP System and external PEEP Valve

Possible Type : Dual Limb Circuit, Single Limb Circuit or Single Limb Circuit with external PEEP Valve

• Pneuma Care : Single Limb Circuit
• Pneuma 1 : Single Limb Circuit, Dual Limb Circuit
• Pneuma 2 : Single Limb Circuit, Dual Limb Circuit

High Efficeint

• Peak Inspiratory Pressure up to 80cmH2O(above PEEP)
• Peak Inspiration Flow up to 160LPM
• FiO2 monitoring(real time monitoring)
• Internal Air/O2 Mixer(O2 Blender)
• Hemo-Dynamic functions with optional Spo2 or EtCO2 functions.

Pneuma Series offer innovated economic and serviceable for maintenance

The Pneuma Series supply economic maintenance with competitive and innovated checking program. The Program is not only for maintenance system but also possible to use of education of ventilation system.

Pneuma Series offer innovated convenience

• Possible to use within 15seconds after turn on
• Useful setting with touch screen and IBW
• Possible to apply with various patient breathing circuit
• Dual limb, Single limb or Single limb with External Peep Valve, Mask(NIV) Ventilation or Intubation

Pneuma Series are applying with unique technology with enough performance

• Supply over 80cmH2O and 160LPM through Built in high performance blower(air generator)
• Internal P-Sol(proportion Solenoid )Active Peep System is possible to supply the peep up to 40cmH2O and Ex-Peep Valve can supply the PEEP up to 20cmH2O
• ACPAP+ : Apply new CPAP for Maximized of breathing convenience
• ABiPAP+ : ACPAP+ periodic high level

*ACPAP
Based on the CPAP’s clinical effective By pressure support, possible to support of breathing as minimized of WOBi and also possible to minimize of WOBe by EX break time. Therefore the ACPAP maintains of the clinical effective of CPAP and compensate of convenience breathing to patient. This technology is our independent and is Patent pending.

Option

• Hemodynamics with SpO2 & EtCO2
• Nasal Cannular for O2 Stream
• Proximal Sensor

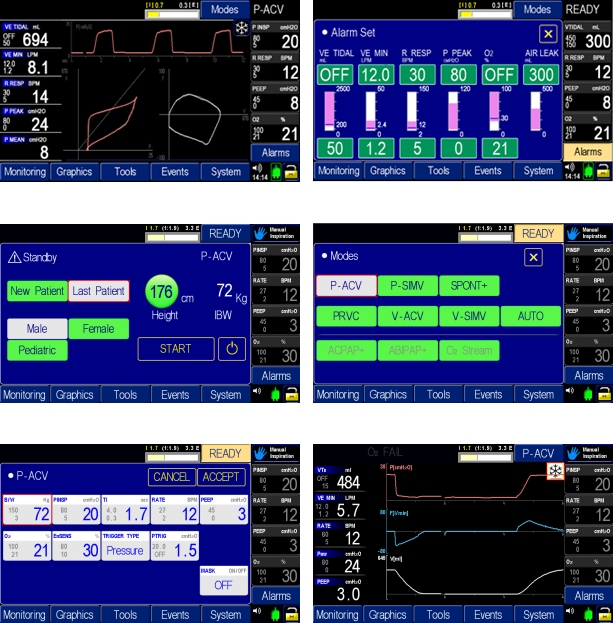

UI
